Description
SPECIFICATIONS
APP Compatibility: Yes
Aperture: F1.6
Assembly Mode: Portable Recorder
Audio Recorded: Yes
Battery: Built-In
Battery Life: Working with CAR Charger
Brand Name: Yangood
Built-in Screen: Yes
Cable Length: 6 meter rear camera
Camera Resolution: 3840×2160
Certification: CE,Dot,FCC,GMP,RoHS,UL,KC,pse,weee
Chipset Manufacturer: HISILICON
Data Storage Capacity: Up to 256GB
Dimensions (W x H x D): 88*28*29
Display: OLED
Display Size: 2.99″
Display screen: 2.99 inch
Frames Per Second: 25
GPS logger: Internal
High-concerned chemical: None
Imaging Sensor: SONY Starvis 2 IMX678
Interface: AV-In,USB 2.0,Micro SD/TF
Is Batteries Included: Yes
Item Type: Car DVR
Loop-Cycle Recording Feature: Yes
Max External Memory: 256G
Maximum Video Frame Rate: 25
Memory Card Required Reding Speed: Class 10
NightShot Function: Yes
Number Of Lenses: 2
OSD Language: Arabic,Chinese (Simplified),Chinese (Traditional),czech,Danish,Dutch,Finnish,French,Hebrew,Italian,Korean,Latin,Malay,Polish,Portuguese,RUSSIA,Russian,Slovenian,Spanish,Swedish,THAI,Turkish,Ukrainian,Vietnamese
Origin: Mainland China
Original Package: Yes
Pixels: 800Mega
Power Source: Corded Electric
Rear Camera: Yes
Rear camera: Sony 307(Optical)
Screen Ratio: 16:9
Special Features: G-Sensor,Digital zoom,sd/mmc card,Bult in GPS,Radar Detector,Anti Surge Voltage Impact,Waterproof,Anti Fog,Anti Vibration,Real Time Surveillance,Automatic White Balance,Wide Dynamic Range,wifi function,Parking Monitor,Speed and Coordinates Recording,3D DNR
Touch Screen: No
Video Code: H.264
Video Format: MP4
View angle: 170 Degree
Warranty: 365 Days
Weight: 0.31kg
Yangood B61P 4K Dashcam Auto Built-in GPS WiFi Car DVR Support 1080P Rear Camera Night Vision Loop Recording 24H Parking Monitor
Features And Specifications
➤Camera Sensor: Front 8MP + Rear 2MP
➤Camera Lens(Front): 7 Glass + 170 Degree Angle + F1.6 Aperture
➤Camera Lens(Rear): 4 Glass + 140 Degree Angle + F2.0 Aperture
➤Video Resolution(Front): 3840*2160P@25FPS
➤Video Resolution(Rear): 1920*1080P@25FPS
➤Photo Resolution: 8M
➤Video Code: H.264
➤Battery: Built-In super capacitor and coin cell (Battery is very small, can not support working, only for save time&setting, please use original power charger when working)
➤Screen size: 2.99 inches
➤OSD Languages: English, Japanese, French, Italian, German, Spanish, Thai, Russian, Chinese (simplified 、Traditional), Korean, etc.
➤Basic Features: G-Sensor, Cycle Recording, Parking Monitor, Time&Data Display, Wide Dynamic Range, ON/OFF Automatically
➤Memory Card: Micro SD Card, class 10 and 64GB to 256GB (Not included)
➤Rear Camera Upgrade: Support max 10 meters cable Rear Camera
➤Add Features: Night Vision, 3840x2160P front Camera, 4K video resolution, WiFi, Built-in GPS tracking

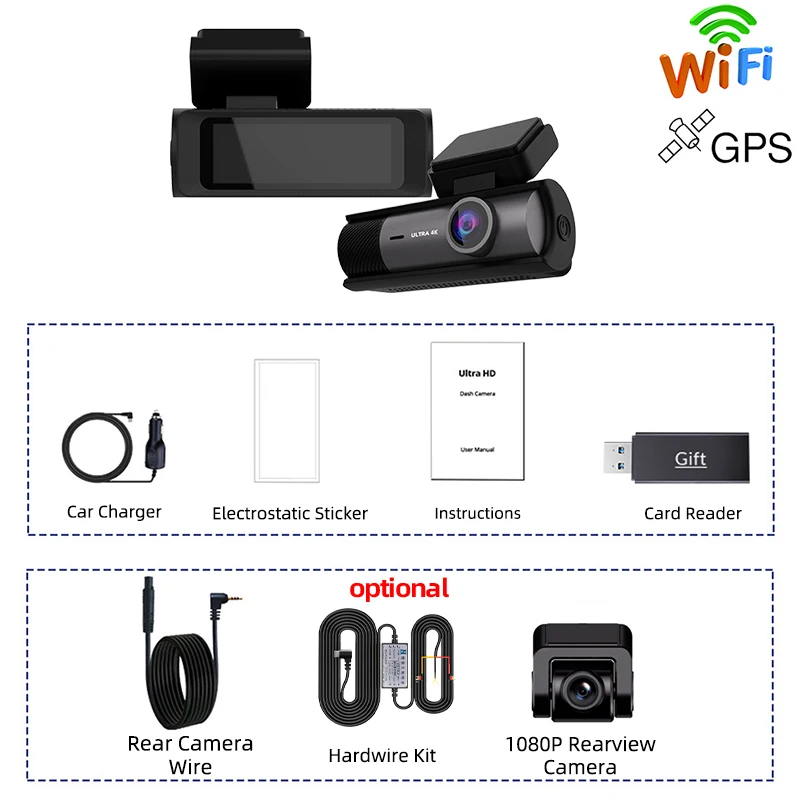

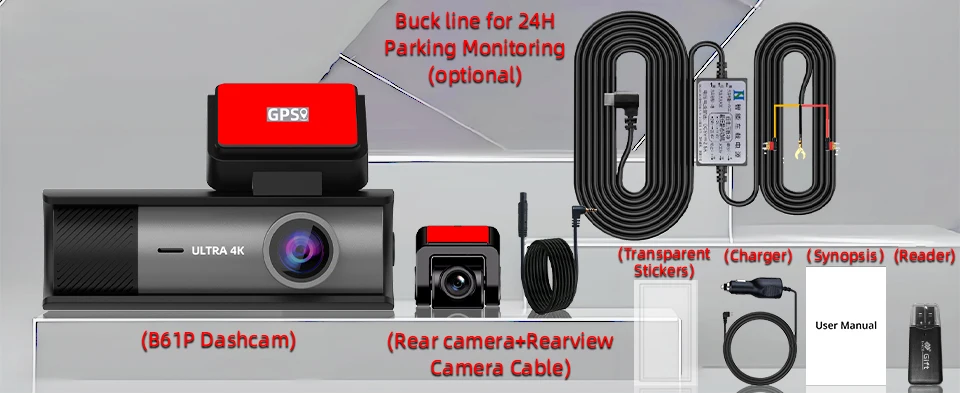

Packing List
-1 x Packaging box
-1 x 4K Dashcam with build-in GPS
-1 x User manual
-1 x Gift
-1 x 1080P Night Vision Rearview Camera With 6 Meters Cable(Optional)
-1 x Buck Line for 24H Parking Monitoring(Optional)
Pay Attention
➤About 24h Monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
➤About Video:
Our Car DVR is 4K Video Recorder,must use high quality U3 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card, please buy our Original TF Card together.
➤About Rear Camera:
Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.

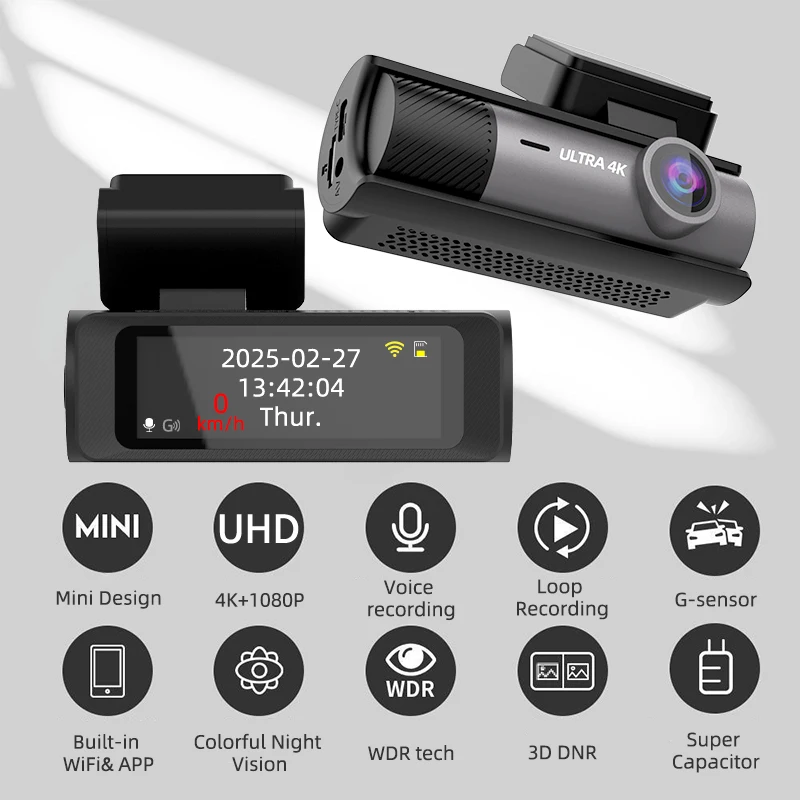

MULTIFUNCTION
Hisilicon Chip
This chip adopts advanced process technology and stable architecture design, with good stability and rellabllity. it can operate stably for a long time in various complex environments, and is not prone to problems such as crashes and lagging, ensuring the normal use of the driving recorder
Adopts Sony Starvis IMX678PL chip
B61P car dash cam adopts Sony Starvis IMX678PL chip, 7-layer optical glass and F1.6 aperture, along with 3D DNR technology for noise reduction processing, allowing for clear capture of license plates, road signs, and pedestrians even in low-light conditions.

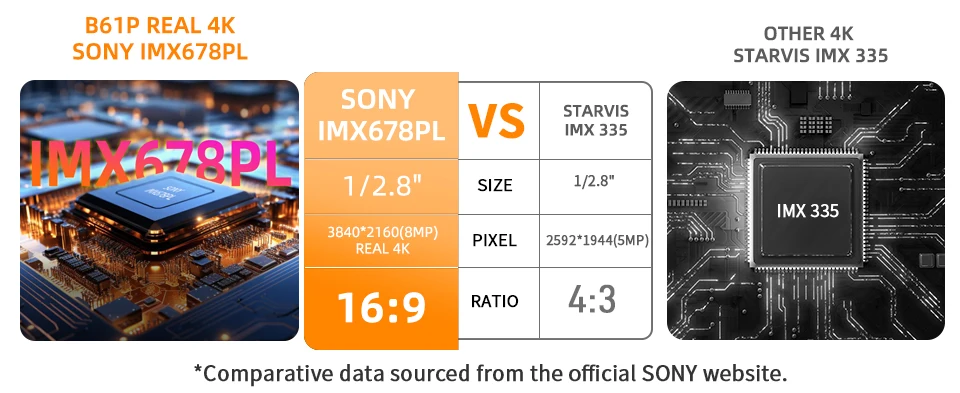

Compare:
. B61P Real 4K Sony Starvis IMX 678PL(3840*2160,8MP,16:9)
. Other 4K (2592*1944,5MP,4:3)
Superior Night Vision
We use 7 layers of high quality glass lenses with F1.6 aperture and Sony top sensor IMX678 PL, further optimizing footage quality in terms of exposure balance, color accurateness and stability.super light-sensitive,even better at night.
Built-in GPS Recording(Reliable Witness for Accident)
Built-in GPS tells how fast you’re going, what direction and your coordinates at all times. which was a very cool feature. If a cop pulls you over and says you’re doing 65 in a 55 zone, you have video to watch and view a moving marker on the route using Google Maps proof of exactly how fast you were going.

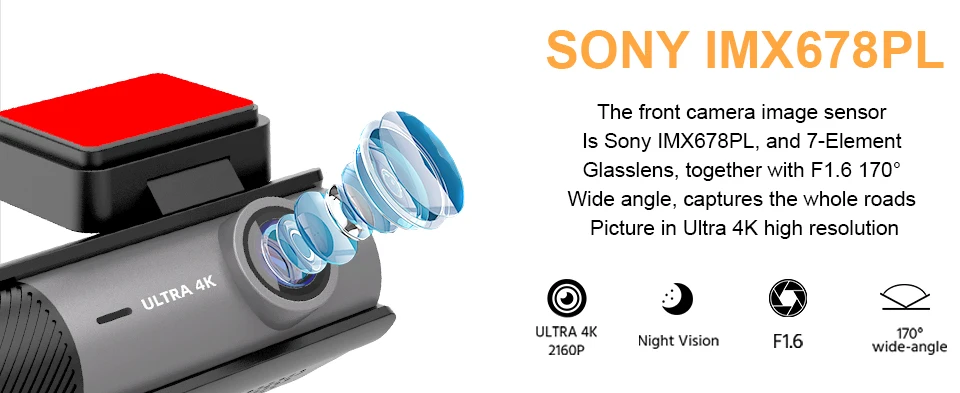

SONY IMX678PL
The front camera image sensor is Sony IMX678PL, and 7-Element glass lens, together with F1.6 170° wide angle, captures the whole roads Picture in Ultra 4K high resolution
WIFI & Connect APP
Built-in Wi-Fi for easy connection to APP,can view, download videos and photos.
Super Capacitor
Dash Cam is powered by a Super Capacitor, without lithium-ion battery.

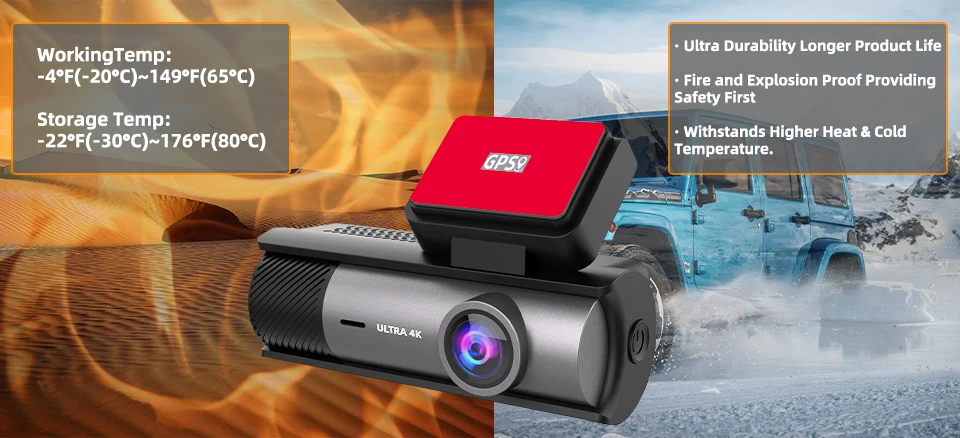

Working Temp:-4°F(-20°C)~149°F(65°C)
Storage Temp:-22°F(-30°C)~176°F(80°C)

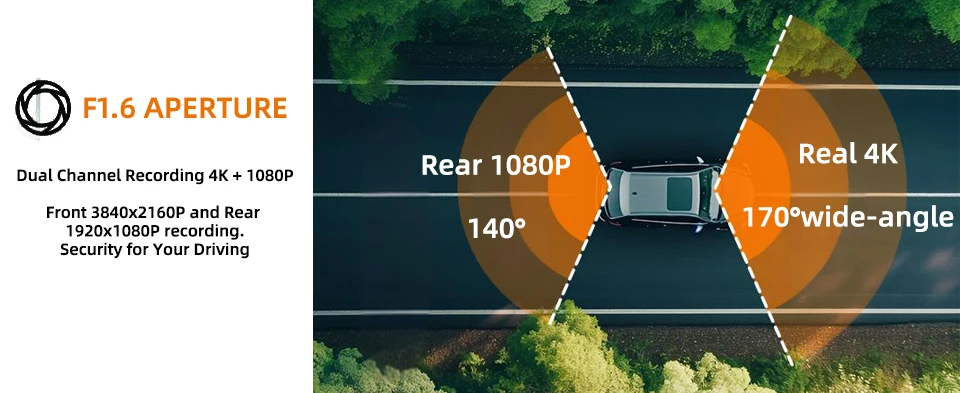

4K+1080P Dual Recording with 170°Wide Angle
Experience unparalleled clarity with B61P 4K front + 1080P rear, capturing both front and rear views for dual-vision recording on the road. Easily installed rear camera for car connects seamlessly to the dash cam front with the included 6m cable, no additional car ports required.
Wide Dynamic Range
WDR- Automatically supplementing light in low-light conditions, suppressing overexposure in strong light and backlight, ensuring clarity in sunny, cloudy, and dimly lit nights.
H.264(High Efficiency Video Coding,HEVC)
H.264 encoding offers faster transmission efficiency and higher image quality than other, doubling compression and saving 50% of storage space.(Please ensure that your player supports the H.264 video format).
G-Sensor and Loop Recording
When the G-sensor receives a sudden impact or collision signal, the dash cam will automatically shoot, save and lock the video.
If the memory card reaches capacity, new recordings will overwrite older footage automatically, but will skip the emergency locked video.locked files would not be overwritten.
24H Parking Monitor(Serious Car Sitter)
Car stops, security never stops. Time-Lapse mode enables around-the-clock recording; G-Sensor mode automatically records when motion& impact is detected. Leave your car in safe hands under either mode.(Need to use Buck Line)

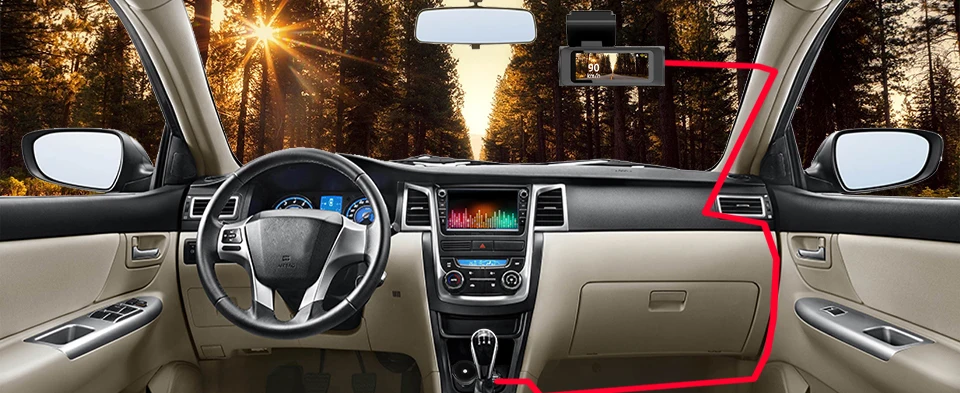

About Dashcam Installation
Installation Steps:
1. Insert the connecting wire into the gap of the roof of the front windshield.
2. Take out the seal on the glass and the co-pilot cover.
3. Insert the connecting wire into the card slot.
4. Plug the 12V-24V power adapter into the vehicle’s 12V power(Cigarette Lighter) port.
Please Note:
1. Please use the original factory standard adapter charger, start and charge it, connect one end of the car charger to the device’s USB port, the other end into the car port, and the device will start once the car engine launch.
2. Not personally dismantling the machine, to avoid affecting the warranty.

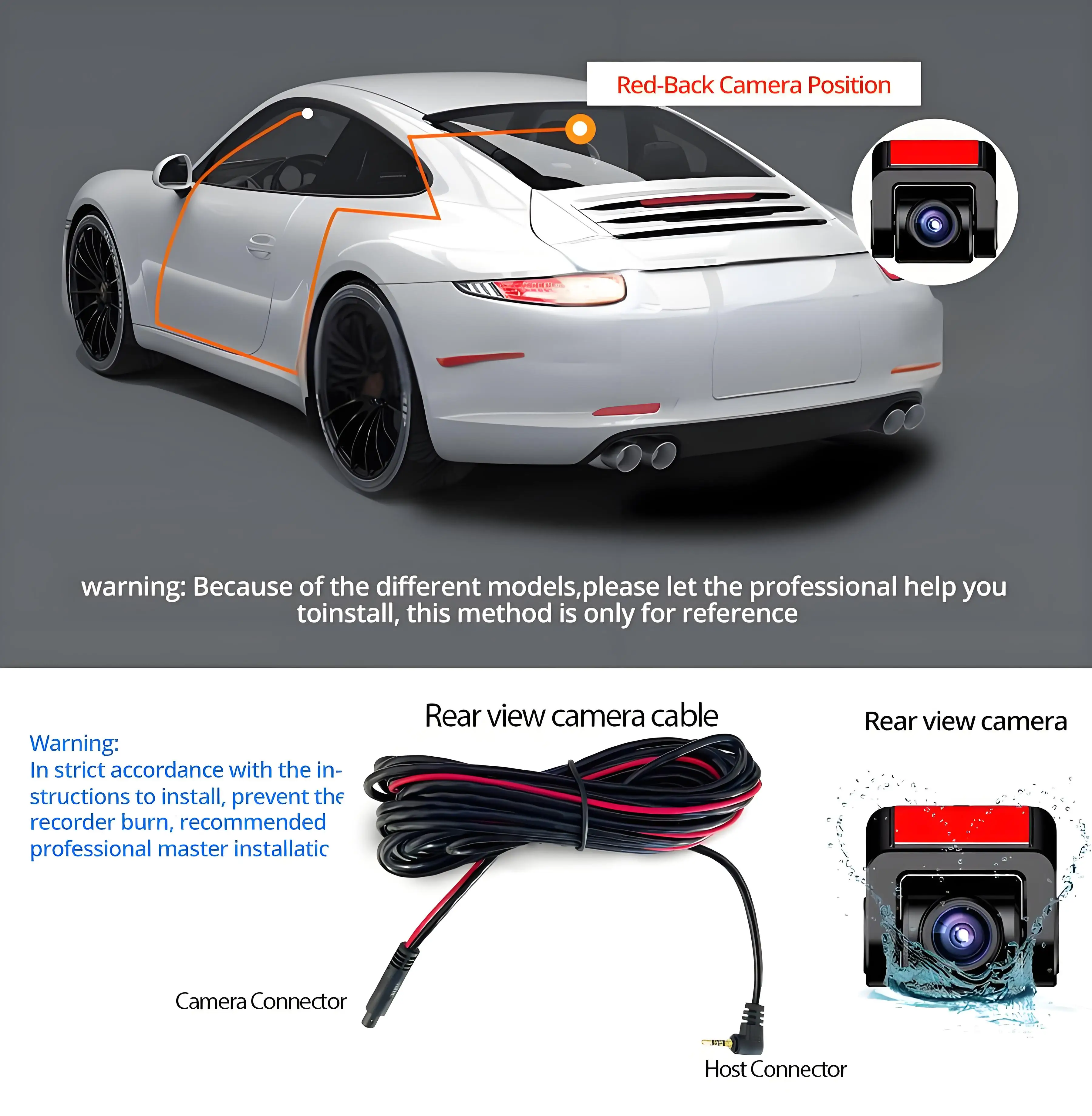

Rear Camera Installation
Plug the rear camera into the AV port on the front camera tightly, carefully run the wire of rear cam and hide it under the trim. Mount it on the rear window inside the car.

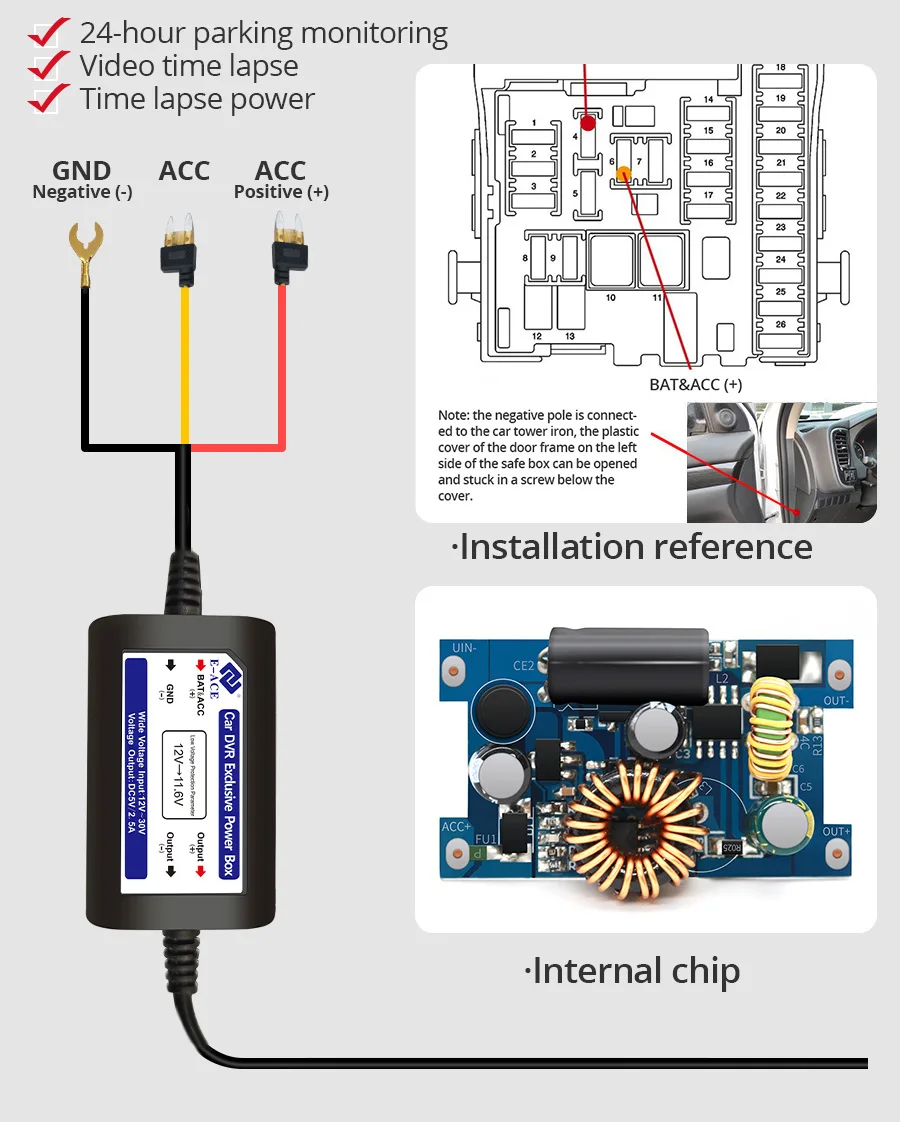

Buck Line
1. Locate fuse box – Check driver’s side or glove compartment (refer to manual).
2. Choose fuse slots
Constant (RED wire) – Stays live when ignition is off (e.g., power outlet).
ACC (YELLOW wire) – Only powers on with ignition (e.g., radio).
3. Install fuse taps
Original fuse → Lower slot.
New fuse (same amps) → Upper slot.
4. Connect wires
RED → Constant fuse tap.
YELLOW → ACC fuse tap.
BLACK → Ground (metal screw).
5. Test – Device should turn on/off with ignition.

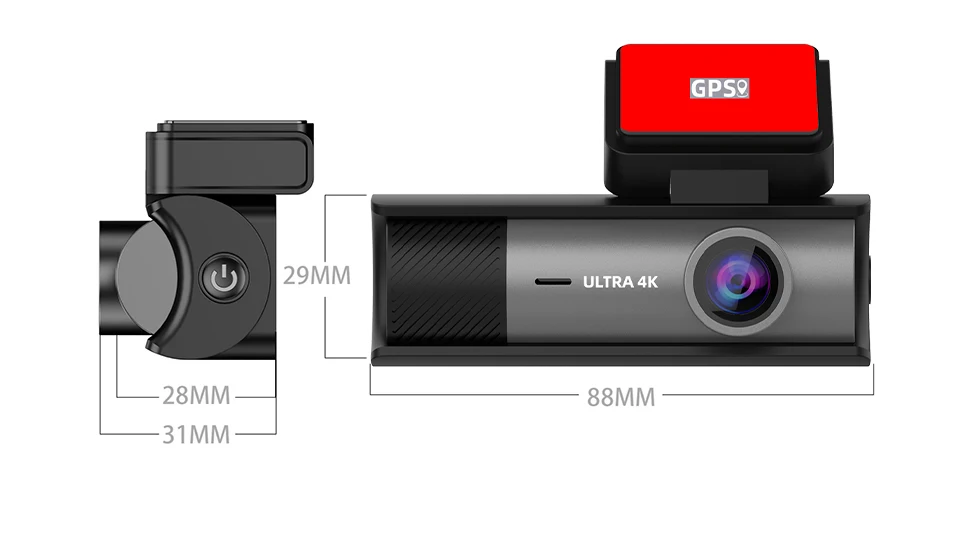

Details and size
Packing List

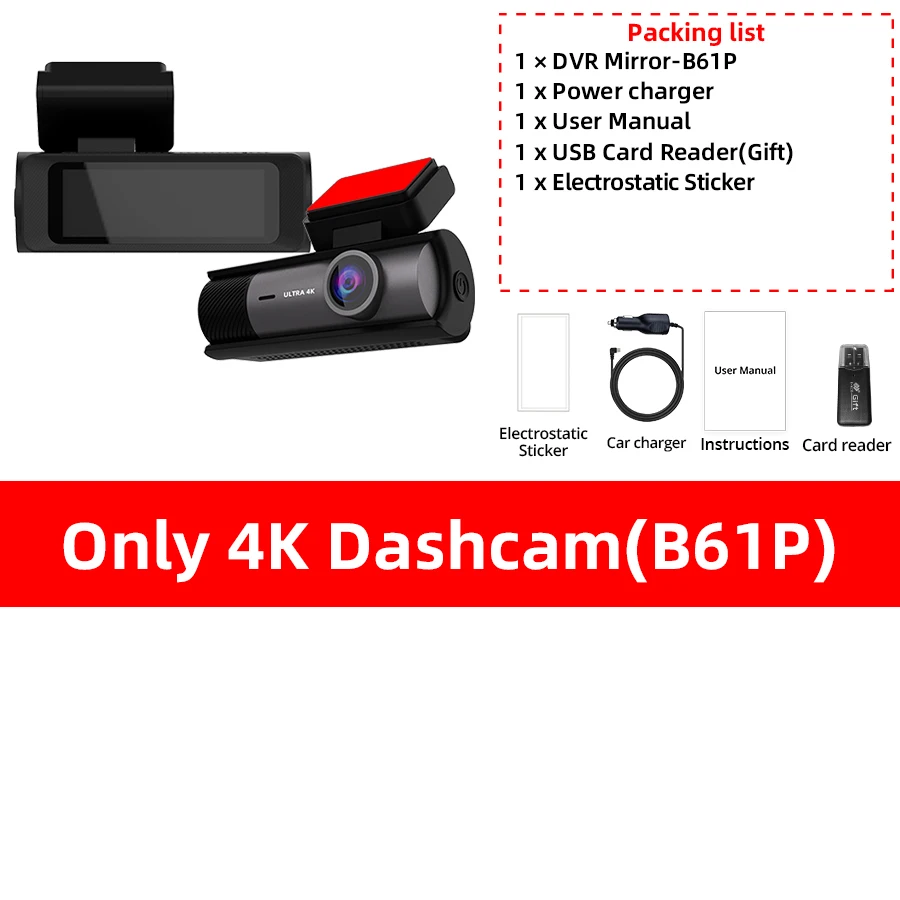

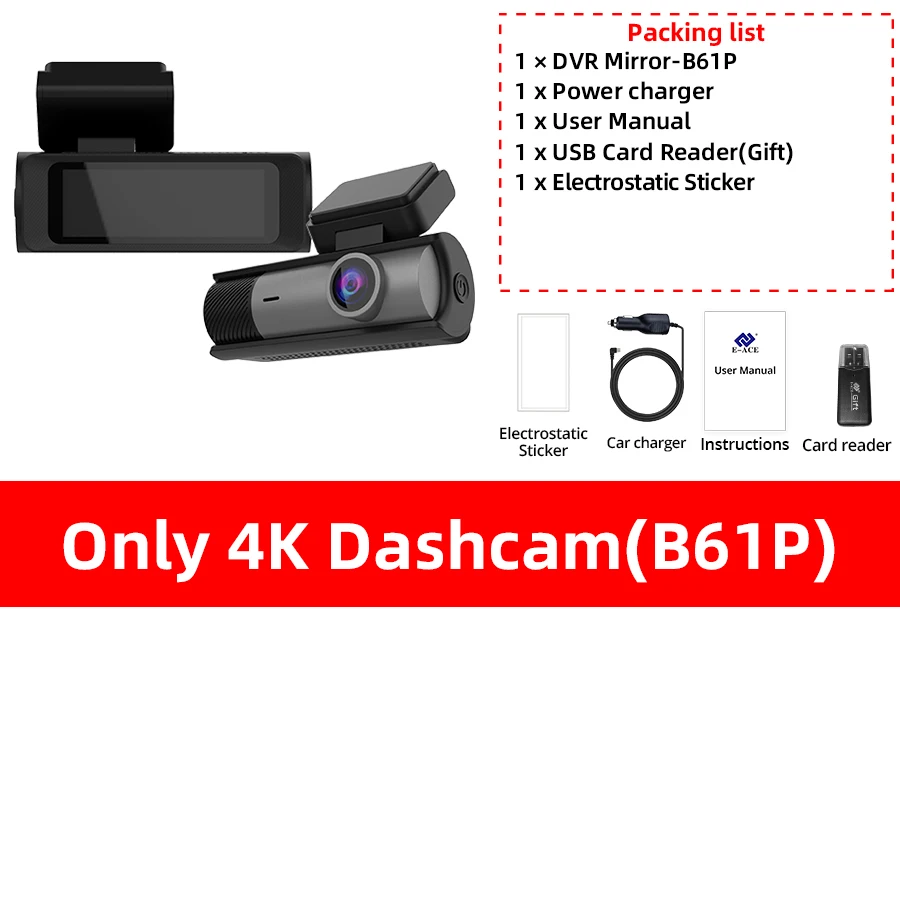

Only 4K Dashcam-B61P
-1 x 4K Dashcam(Without Rearview Camera)
-1 x Power charger
-1 x User Manual
-1 x USB Card Reader (Gift)
-1 x Electrostatic Sticker

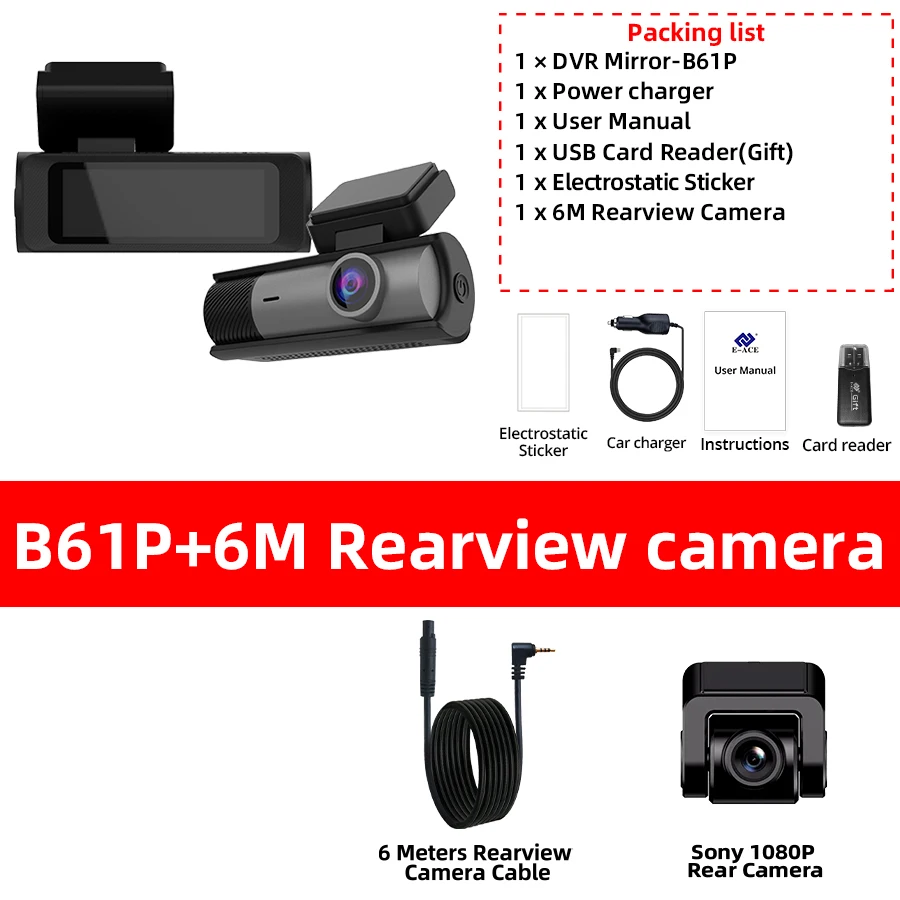

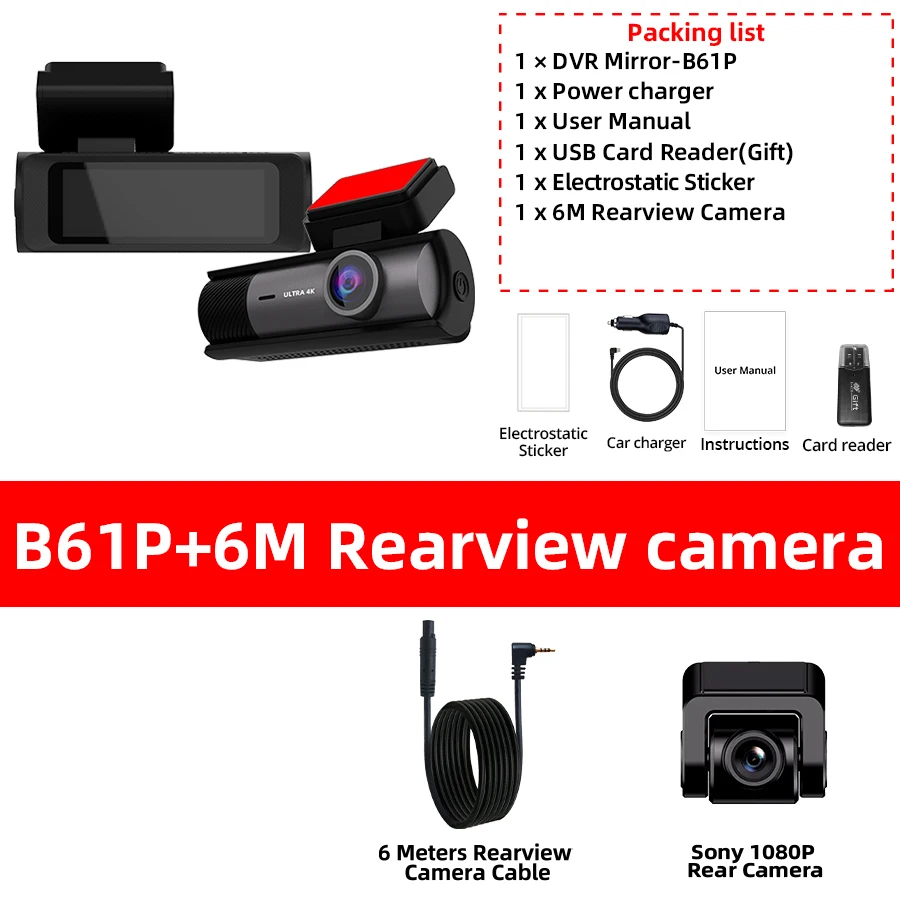

B61P-6M RC
-1 x 4K Dashcam
-1 x Original Power charger
-1 x User Manual
-1 x Sony 1080P Rearview Camera With 6 Meters Cable
-1 x USB Card Reader (Gift)
-1 x Electrostatic Sticker

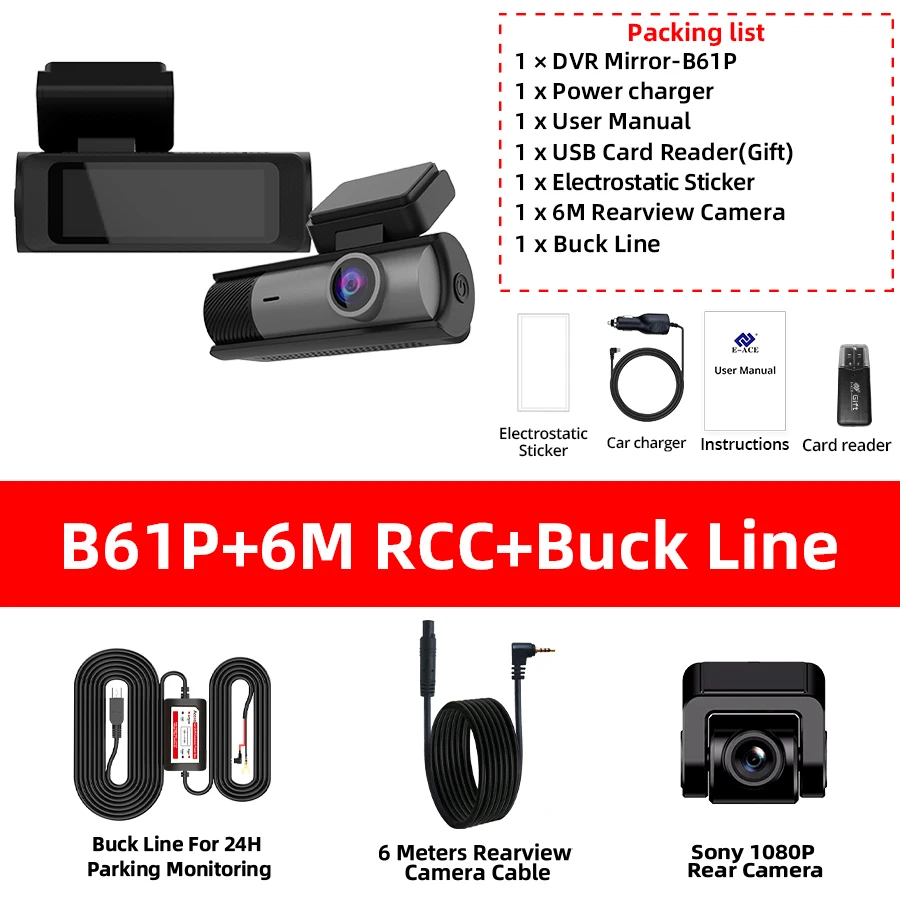

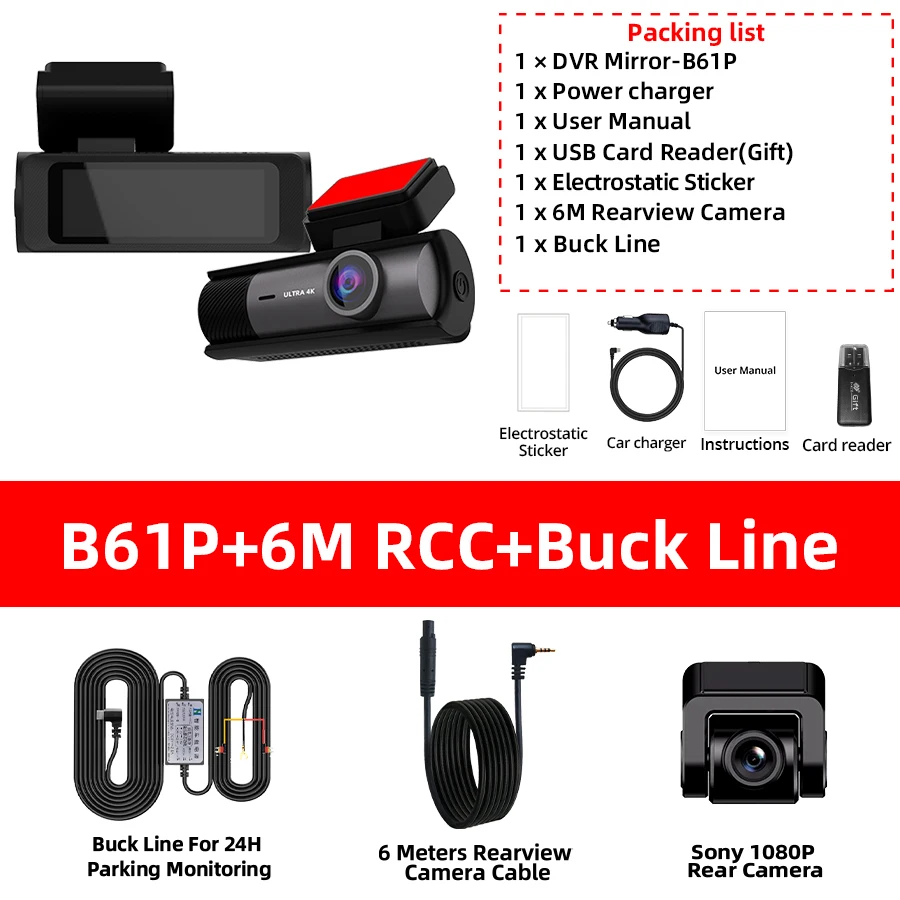

B61P-6M RC-BL
-1 x 4K Dashcam
-1 x Original Power charger
-1 x User Manual
-1 x Sony 1080P Rearview Camera With 6 Meters Cable
-1 x USB Card Reader (Gift)
-1 x Electrostatic Sticker
-1 x Buck Line
